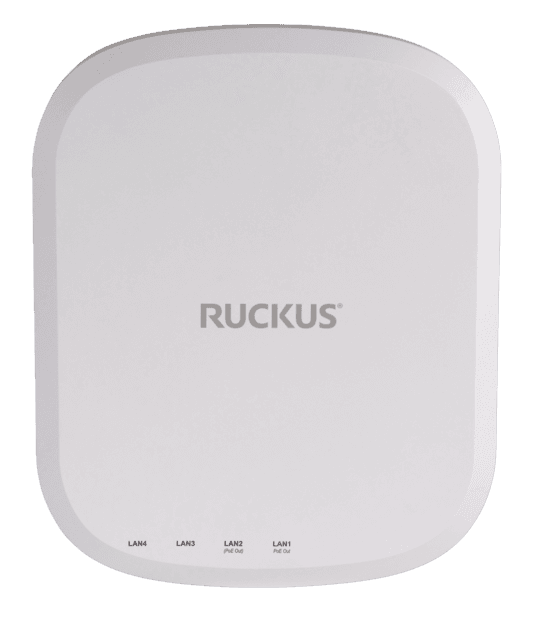

RUCKUS H670 Indoor Access Point

Reference H670

High-Performance Wall-Mounted Wi-Fi 7 2x2:2 Indoor Access Point with 9.3 Gbps max rate and Embedded IoT

Wi-Fi 7Wi-Fi Generation
9340 Mb/sCombined Max PHY Rate
768Concurrent Users

RUCKUS H670 Indoor Access Point Features

The R670 provides wi-fi 7 wired & wireless in-room connectivity with exceptional end-user experience expanding the range of use cases for Wi-Fi 7 including guest rooms, MDU apartments and meeting rooms.

The RUCKUS H670 represents the new benchmark for Wi-Fi 7 in-room connectivity. It is a wall-mounted Wi-Fi 7 tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz, and 6GHz). With Multi-Link Operation (MLO), Preamble Puncturing, 4K QAM, and 320MHz channels, it achieves a combined data rate up to 9.34 Gbps, ensuring exceptional performance in any environment.

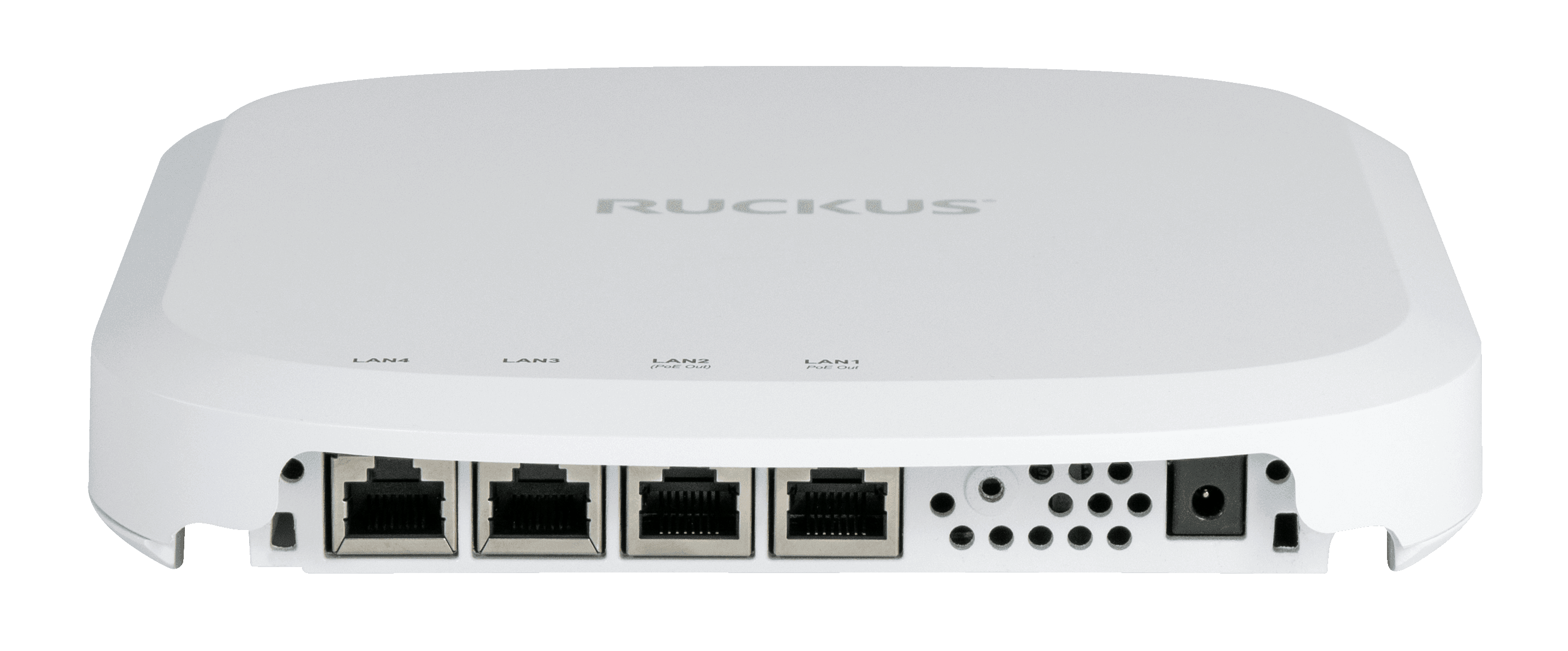

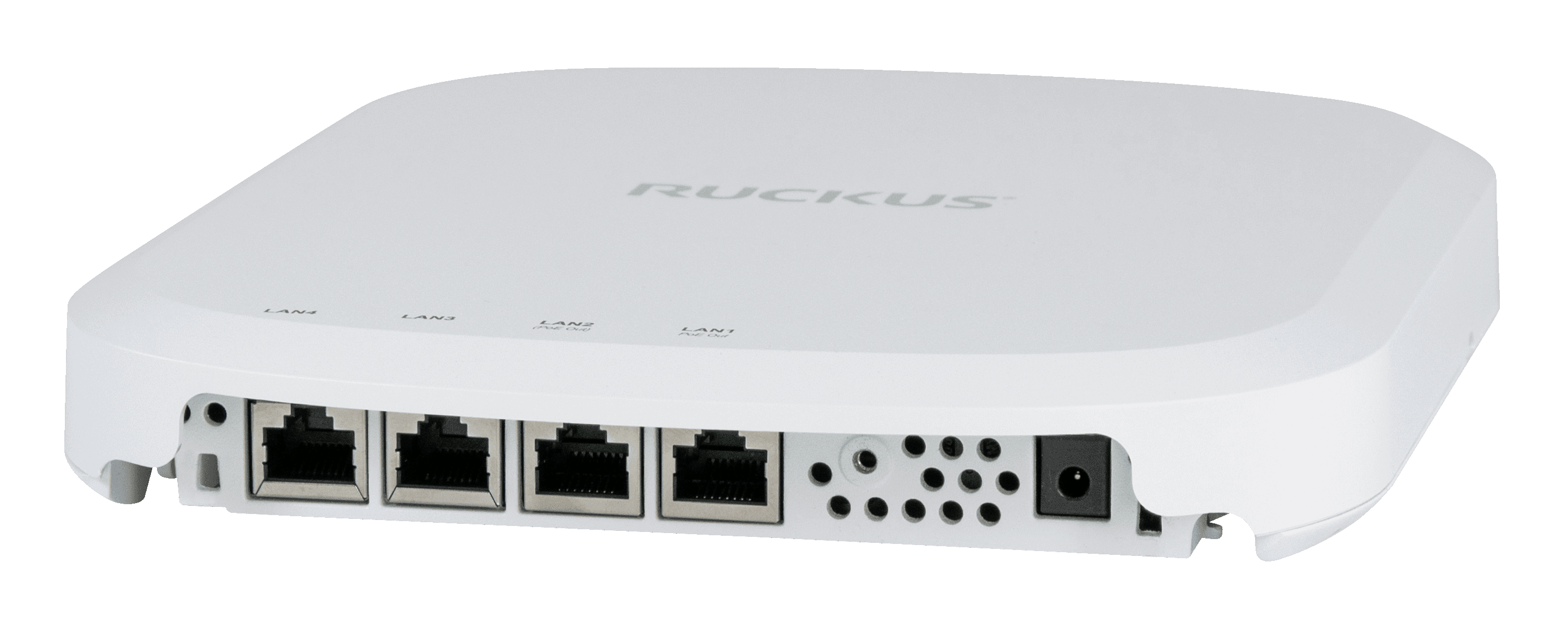

A 5 Gbps Ethernet port ensures smooth, high-speed backhaul performance, while four 2.5 Gbps (two PoE-enabled) ports power in-room devices like IP phones, security cameras, and smart IoT endpoints. This makes the H670 a true converged edge device; delivering both wireless and wired connectivity in a single, elegant and easy to deploy wall-mounted unit.

Specifications

RUCKUS H670 Indoor Access Point — Specifications
Specification	Value
Product classification
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Indoor access point
Product Brand	RUCKUS®
General Specifications
Antenna Patterns, per band	4000+
Antenna Gain	Up to 3 dBi
BeamFlex	Yes
ChannelFly	Yes
Concurrent Users	768
Controller Support	RUCKUS One™ \| RUCKUS SmartZone \| RUCKUS Unleashed™
Ethernet Ports	1 x 1 / 2.5 / 5 GbE \| 4 x 1 / 2.5 GbE
IoT Support	IoT Onboard (dual-concurrent)
Number of Radios	Tri-Radio
PD-MRC	Yes
PHY Rate at 2.4 GHz, maximum	689 Mb/s
PHY Rate at 5 GHz, maximum	2882 Mb/s
PHY Rate at 6 GHz, maximum	5765 Mb/s
Combined Max PHY Rate	9340 Mb/s
Radio Chains and Streams	2x2:2
Rx Sensitivity at 2.4 GHz	-97 dBm
Rx Sensitivity at 5 GHz	-95 dBm
Rx Sensitivity at 6 GHz	-95 dBm
SmartMesh	Yes
Venue Type	Education \| Hospitality \| MDU \| Office/Retail
Venue Sub-Type	Guest Rooms \| Residence Hall
Wi-Fi Bands Supported	2.4 GHz \| 5 GHz \| 6 GHz
Wi-Fi Generation	Wi-Fi 7
Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac/ax/be
Environmental Specifications
Operating Temperature	0 °C to +40 °C (+32 °F to +104 °F)
